Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: ZH
  • Model Number: LDT-DN200
  • Product Name: Electromagnetic Flow Meter Of Acid Flow Meter Type
  • Size: DN200mm
  • Power supply: DC3.6V
  • Accuracy class: ±0.5%
  • Communication: RS485,Modbus
  • Operating humidity: Less than 95%
  • Connection: Flanged
  • Pressure: 0.6~4.0MPa
  • Medium conductivity: more than 5us/cm
  • Protection grade: IP65

Packaging & Delivery

Packaging Details carton or plywood box for export
Delivery Time 3 days after payment

Electromagnetic Flow Meter Of Acid Flow Meter Type

Electromagnetic Flow Meter of acid flow meter type

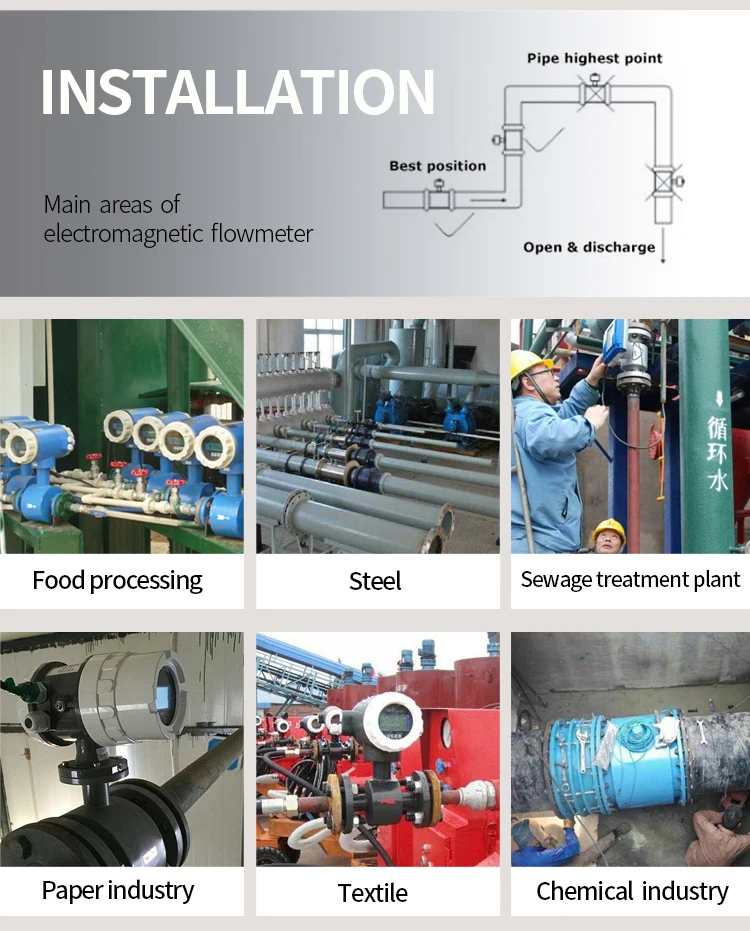

    Electromagnetic flow meter is a kind of high performance, high reliability flowmeter, which is widely used in petroleum, chemical industry, food, electricity, steel, paper making, metallurgy, water supply and drainage, petrochemical, medicine industry, etc.

Electromagnetic Flow Meter of acid flow meter type

Its advantage:

1 . Can be used not only in general process test,but also in the measurement of pastry liquids,like cement grout,paper pulp etc.

2 . There is no movable parts in the electromagnetic flowmeter, no loss pressure , simple structure, woke reliable;
3 . The measurement accuracy is not affected by the change of the measured medium’s pressure, density (including liquid-solid two-phase),temperature, viscosity and other physical parameter;
4 . Moisture proof and waterproof performance is good. Suit for setting up and being used underground or wet environments;
5 . Compare with other flowmeter, its advantage : big measurement range , low demand in straight pipe, high accuracy;
6 . Low power consumption, one set flowmeter power consumption less than 20W.

Electromagnetic Flow Meter of acid flow meter type

Main technical parameters:

Accuracy class±0.2%,±0.3%,±0.5%
Scaled output singal4mA-20mA, 0Hz~ 5 KHz
Working pressure-20~50℃
Pressure0.6~4.0MPa
Operating humidity≤95%
Protection ClassIP68,IP65(optional)
Medium conductivity>20 μs/cm
PowerAC220V/DC24V/DC3.6V
DisplayLCD display
StructureIntegral type, seperate type
ConnectionFlange connection[GB/T9119-2010 standard]
CommunicationRS485,RS232,MODBUS

Electromagnetic Flow Meter of acid flow meter type

Dimensions and weight:
Size(mm)LengthFlange diameterbolt holes center diameterflange thicknessHeightBoltWeight
mmHole DIAQty and sizeKG
DN4020015011018320184*M169
DN5020016512520335184*M1610
DN6520018514520355188*M1612
DN8020020016020370188*M1614
DN10025022018022390188*M1615
DN12525025021022420188*M1618
DN15030028524024450228*M2023
DN20035034029524505228*M2027

Electromagnetic Flow Meter of acid flow meter type

Selection of Electrode Materials:
NO.Electrode materialCorrosion resistance
1316LMeasuring water, sewage or organic acid or inorganic acid of minor corrosive medium.
2HB/HCResistant to corrosion of oxidizing acid such as nitric acid, mixed acid, chromic acid and sulfuric acid, or a mixed medium of corrosion, but also resistant to salts of the oxidation as Fe + + +, Cu + +, or the other oxidant-containing corrosion. Such as hypochlorous acid alkaline solution is higher than normal temperature or sea water corrosion
3TiApplicable in seawater, various chloride and hypochlorite, chlorinated acids (including fuming nitric acid), organic acid, alkali, etc.
Do not resistant to the pure reduction acid (such as sulfuric acid, hydrochloric acid) corrosion. However, if an acid containing an oxidizing agent (such as nitric acid and containing Fe + + +, Cu + + ions in the medium) the corrosion is greatly reduced.
4Tantalum(Ta)Having strong resistance to corrosive mediums that is similar with glass.
Almost applicable in all chemical mediums except for hydrofluoric acid, fuming sulfuric acid and alkali (including the boiling point of hydrochloric acid, nitric acid and sulfuric acid below 175 ℃). It has not any resistant to corrosion in alkali.
5Stainless steel covered with tungsten carbideApplicable in mediums of non-corrosive and low abrasion.
6Platinum-iridiumAlmost be applicable in all chemical mediums except for aqua for this, ammonium salt.

Electromagnetic Flow Meter of acid flow meter type

Selection of Lining Materials:

NO.Lining Materialsmain performanceApplications
1Chloroprene Rubber (CR)1.Oil resistance, solvent resistance, oxidation resistance, resistance to general acid, alkali, salt and other corrosive media
2. Excellent flexibility and abrasion resistance. But poor in cold resistance
1.0℃~80℃ Non strong acid, strong alkali, strong oxidizing media
2.can measure sewage and mud
2Nature Rubber1. Abrasion resistance, corrosion resistance, insulating properties, good low temperature resistance
2. Poor in oil resistance, aging resistance and oxidation resistance
-10℃~70℃ Non I146 acid, strong alkali, strong oxidizing media,suitable for drinking water
3Polyurethane rubber1.Excellent abrasion resistance and flexibility
2.Poor in acid resistance and alkali resistance
1.-25℃~60℃
2. neutral mash, coal slurry and mud slurry with strong abrasion
4PFA1. Good hydrophobic and non-viscous, strong high temperature resistance
2. Excellent corrosion resistance. Resistance to acids, alkalis, organic solvents, and various salt solutions
3. Good ability of negative pressure resistance, also can add metal mesh to improve the ability to negative pressure resistance when requirements is high
4. Poor abrasion resistance
1.-25℃~140℃ non-abrasive media
2. Sanitary media
5PTFE1. The most steadiest material in plastics which is resistant to boiling hydrochloric acid, sulfuric acid, nitric acid and aqua regia, as well as strong alkali and organic solvents. Non-resistant to chlorine trifluoride, high velocity liquid fluorine or liquid oxygen, ozone corrosion
2. Poor in abrasion resistance.
3. Not suitable for backward pressure pipeline
1.-25℃~140℃
2.Strong corrosive media, such as strong acids and alkali
3.Sanitary media
6FEP(F46)1. Hydrophobic and non-viscous
2. Corrosion resistance is only lower than PFA
3. Can add metal mesh to improve the ability to negative pressure resistance when requirements is high
4. Poor in abrasion resistance
1.-25℃~100℃ non-abrasive media
2. Sanitary media
7Nitrile rubber1. Resistance to high temperature and general acid, heat resistance and abrasion resistance are better than neoprene and natural rubber. Oil resistance is its outstanding properties.
2. Ozone resistance, poor low temperature performance. Lower electricity
1. 0℃~80℃ Ordinary acid, alkali, salt, especially for oily medium
2. Not to be used for low temperature medium

Electromagnetic Flow Meter of acid flow meter type

 our company:



Electromagnetic Flow Meter of acid flow meter type

Our customers and exhibition:

Electromagnetic Flow Meter of acid flow meter type

shipping and package:
